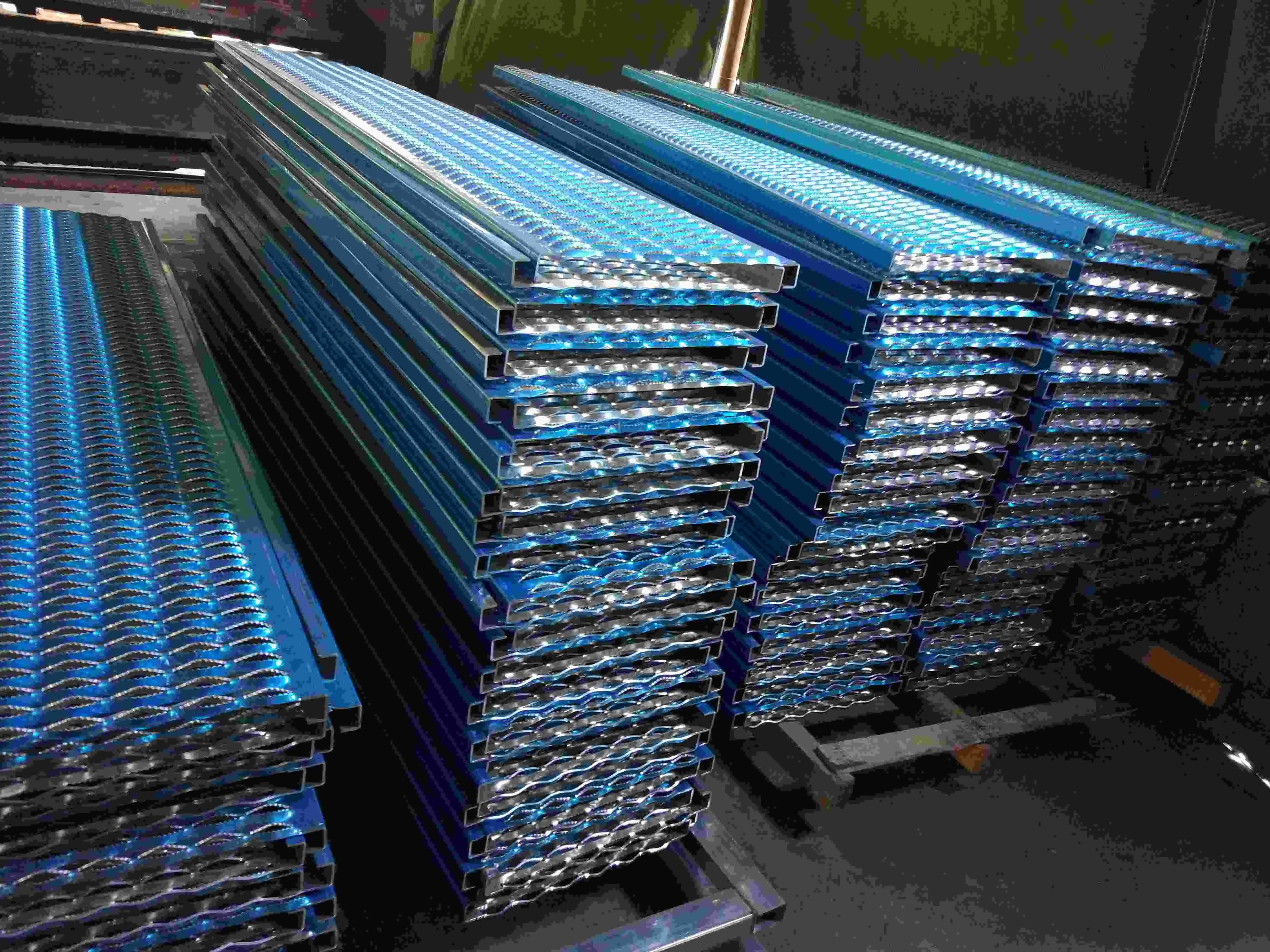

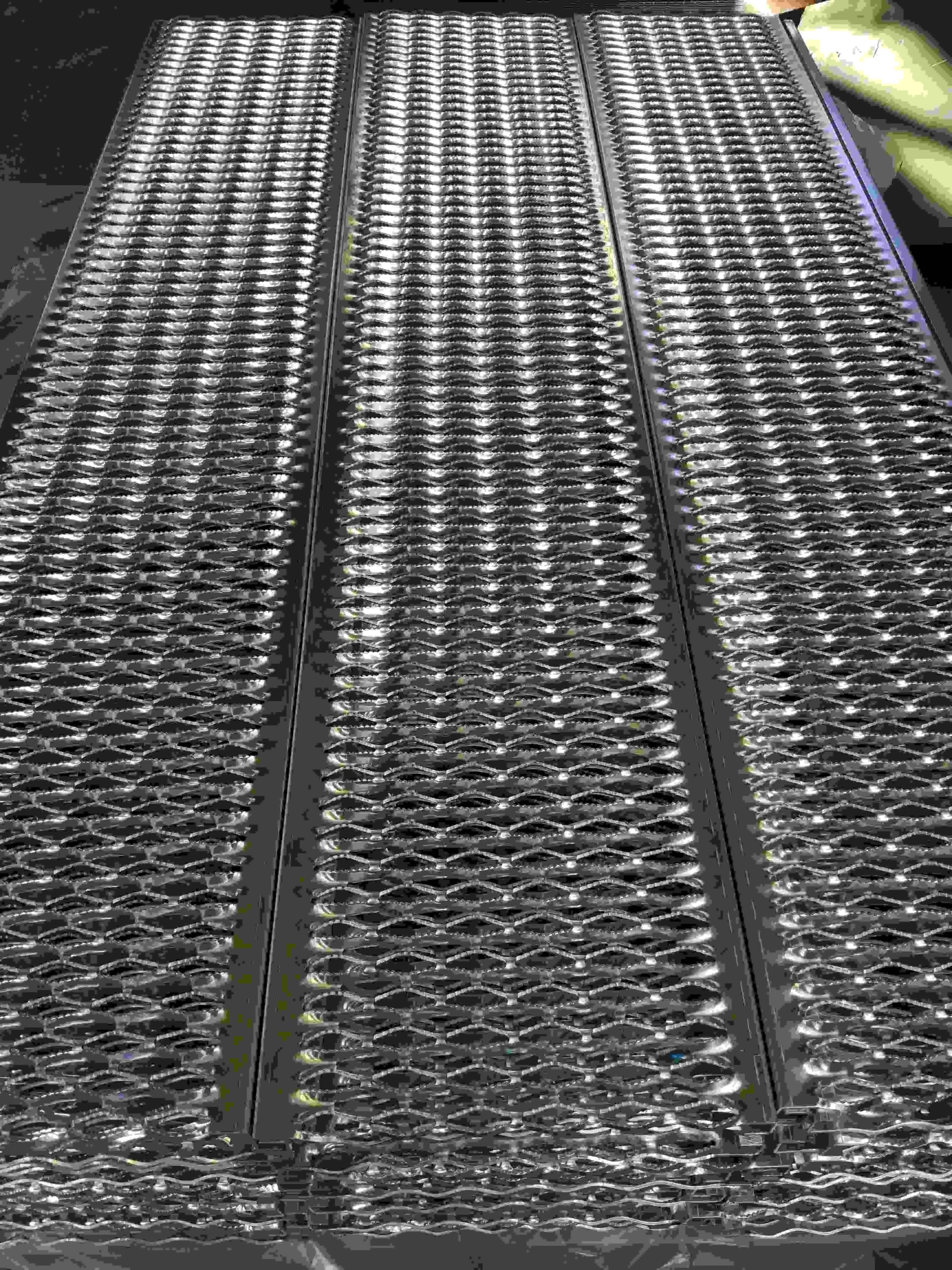

Grip struct safety grating

Grip Strut Walkway Planks, also known as grip strut safety grating, stair treads, or anti-skid plate, are high-strength metal safety gratings designed to provide a slip-resistant and secure workplace. Each plank is produced by a punching machine and shaped with precision moulds to create a serrated surface that delivers maximum slip protection in all directions. This makes grip strut walkway planks ideal for all working and walking surfaces where ice, water, mud, snow, oil, or grease can create dangerous conditions.

Calidad estable
Precio razonable
Entrega rápida

Consulta en línea

Product Overview

Beyond slip resistance, the open diamond pattern allows fluid and mud to drain freely, keeping the walking surface clean and safe. The size of the openings is small enough to catch falling tools and dangerous objects, protecting workers and equipment below. Manufactured in carbon steel, aluminum, stainless steel, galvanized steel, and black HRPO, grip strut walkway planks are a durable, maintenance-free, and cost-effective safety solution for industrial and commercial environments.

Technical Specifications

Product Type

Grip Strut Walkway Planks / Grip Strut Safety Grating / Stair Treads / Anti-Skid Plate

Channel Height

2 inch, 2 1/2 inch, 3 inch, 4 inch, 5 inch (walkway)

Steel Gauge

9GA, 10GA, 11GA

Channel Width

9 1/4 inch, 13 3/4 inch, 27 4/7 inch, 30 inch, 36 inch

Standard Length

10 ft, 12 ft

Material

Carbon Steel, Aluminum, Stainless Steel, Galvanized Steel, Black HRPO

Thickness

Carbon steel and stainless steel: usually 12GA, 14GA, 16GA. Aluminum: usually 0.125 inch.

Pattern

Regular, Heavy Duty, Walkway, Stair Treads

Features and Benefits

Durable construction for long-term industrial use
High load capacity for heavy-duty applications
Allows fluid and mud to drain through the open pattern
Easy to handle and install on site
Maintenance-free with long service life
Serrated surface provides slip protection in all directions
Available in regular, heavy duty, walkway, and stair tread patterns
Material options include galvanized steel, carbon steel, stainless steel, and aluminum
Small openings catch falling tools and dangerous objects
Reduces workplace injuries and overall operating costs

Typical Applications

Walkways

Slip-resistant pedestrian routes in industrial and commercial facilities.

Working Platforms

Safe standing surfaces for maintenance and operational access.

Stair Aisles

Traction surfaces for stairways and aisle steps.

Catwalks

Elevated access walkways in refineries, plants, and warehouses.

Mezzanine Floors

Durable flooring for elevated storage and work areas.

Steel Flooring

Anti-slip flooring in production and processing areas.

Balconies

Safe walking surfaces for elevated access and viewing areas.

Floor Safety Grating

Anti-slip flooring in high-traffic industrial zones.

Metal Trench Covers

Durable covers that drain fluids while supporting foot traffic.

Ship Resistant Stair Treads

Corrosion-resistant stair treads for marine and offshore applications.

Automotive, Aviation, and Ship Manufacturing

Safety surfaces in vehicle, aircraft, and vessel production facilities.

Sewage Treatment

Slip-resistant and corrosion-resistant grating for wastewater plants.

Powder Plants

Durable safety surfaces in powder processing and handling facilities.

Installation

Grip Strut Walkway Planks are typically installed onto I-beams for secure mounting. The installation process is straightforward and does not require specialized tools.

Step 1: Drill a Pilot Hole

Drill a pilot hole on the I-beam at the required mounting position.

Step 2: Position the Fasteners

Place the diamond washer, carriage bolt, and flat washer through the plank and into the drilled hole.

Step 3: Tighten the Assembly

Secure the hex nut and tighten the washer and nut until the plank is firmly fixed to the I-beam.

Fastening Accessories

Diamond Washer
Carriage Bolt
Flat Washer
Hex Nut

Material Options

Carbon Steel

High strength and durability for heavy industrial applications.

Galvanized Steel

Hot-dip galvanized for excellent corrosion resistance in outdoor and humid environments.

Stainless Steel

Superior corrosion resistance for chemical, food, and marine environments.

Aluminum

Lightweight and corrosion-resistant for applications where weight is a concern.

Black HRPO

Hot-rolled pickled and oiled steel for painted or coated applications.

Why Choose Hydwiremesh (Hengyueda)

Advantage	Details
20+ Years Experience	Two decades of metal grating manufacturing and export expertise.
Strict Quality Control	Multi-stage inspection ensures every plank meets specifications.
Global Reach	Customers in over 30 countries across industrial and construction sectors.
Flexible MOQ	Trial orders and bulk container orders both welcome.
Export Documentation	Complete customs clearance support and inspection reports.

Request a Quote for Grip Strut Walkway Planks

Get factory-direct pricing, free samples, and fast turnaround. Contact our export team today.

Email: 517714@qq.com

Send Inquiry

Frequently Asked Questions

What is grip strut safety grating used for?

Grip strut safety grating is used for walkways, working platforms, stair aisles, catwalks, mezzanine floors, steel flooring, balconies, floor safety grating, metal trench covers, and ship stair treads where slip resistance and drainage are required.

What materials are available?

Grip strut walkway planks are available in carbon steel, aluminum, stainless steel, galvanized steel, and black HRPO to suit different environments and load requirements.

How does the serrated surface improve safety?

The serrated surface creates friction in all directions, providing slip resistance even when the surface is wet, oily, or covered with mud, snow, or grease.

Can channel height and width be customized?

Yes. Standard channel heights range from 2 inch to 5 inch and widths from 9 1/4 inch to 36 inch. Custom sizes are available on request.

How are grip strut planks installed?

Grip strut planks are typically mounted to I-beams using a diamond washer, carriage bolt, flat washer, and hex nut. Drill a pilot hole, position the fasteners, and tighten until secure.

What is the lead time for bulk orders?

Standard lead time is 15 to 25 days after deposit, depending on order quantity and customization.

What payment terms do you accept?

We accept T/T, L/C, and other negotiable terms. Our sales team will provide detailed payment information with your quotation.
