Added SuccessfullyProduct Overview

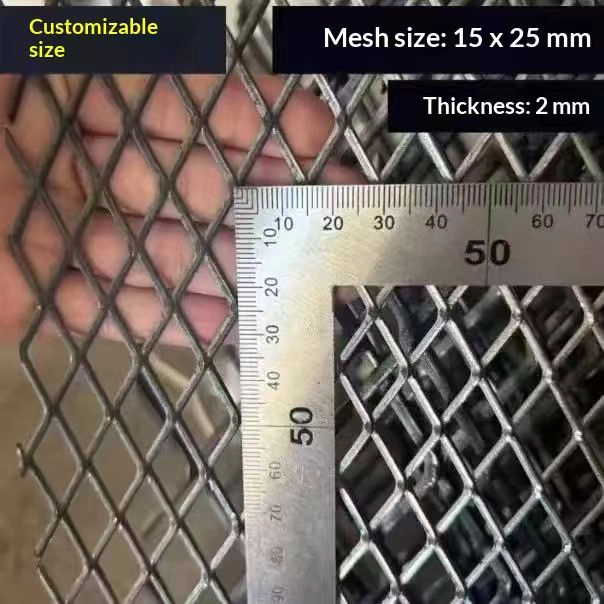

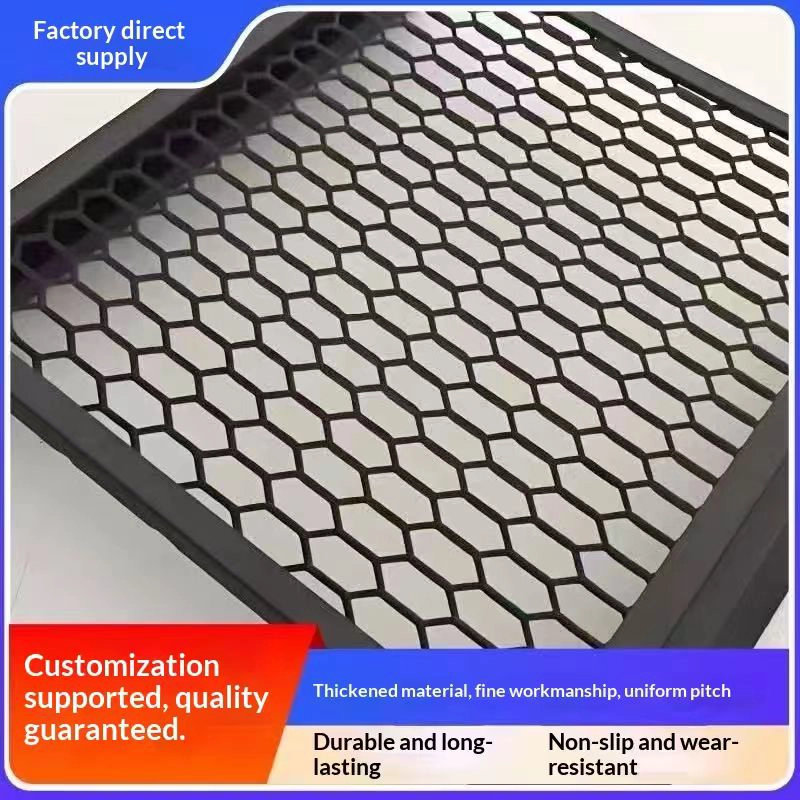

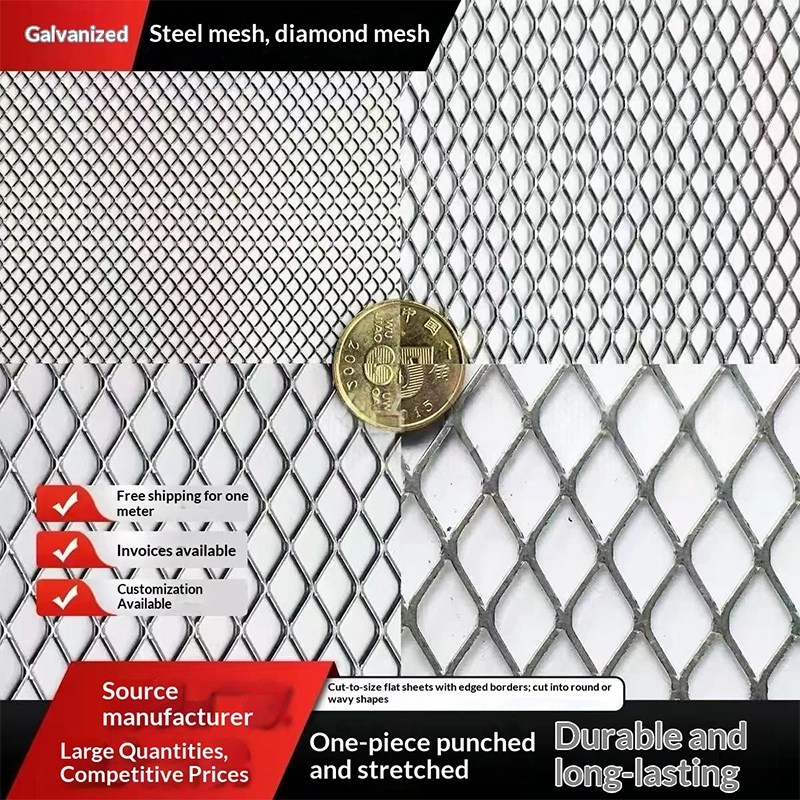

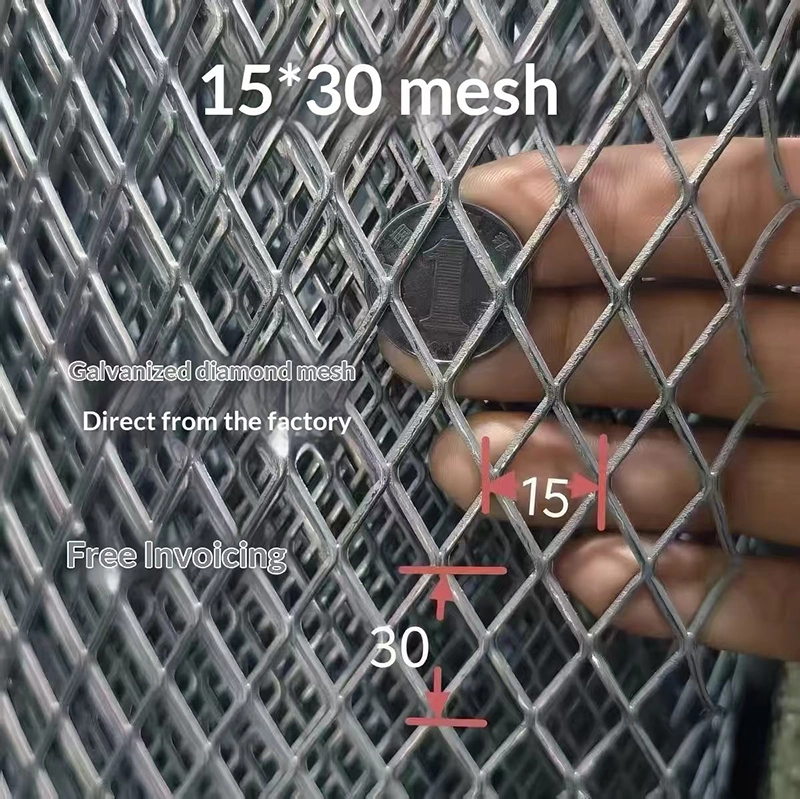

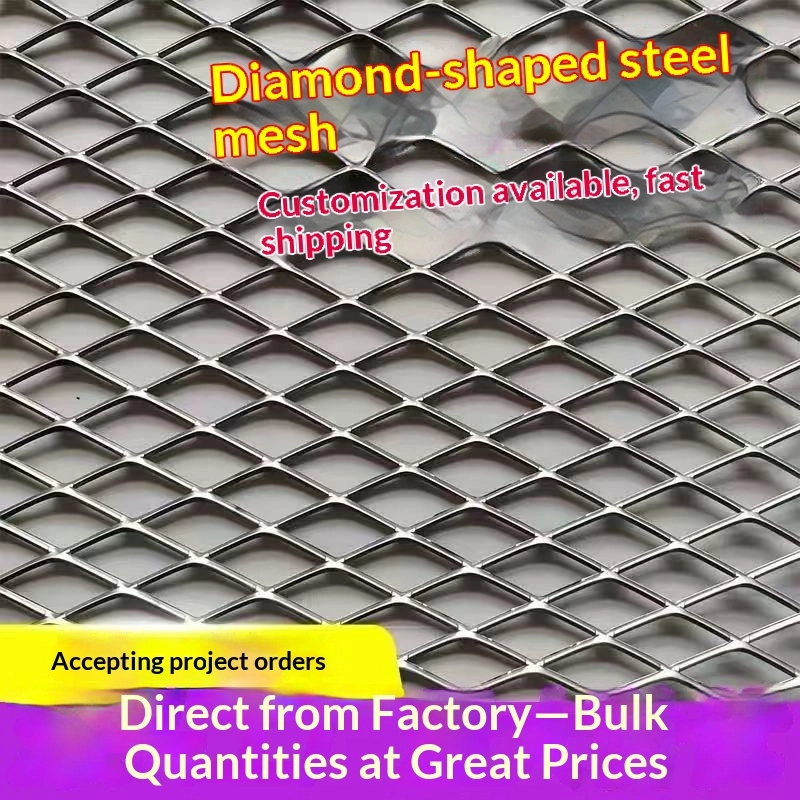

Galvanized diamond mesh, also known as small opening expanded metal, is a precision-perforated metal sheet manufactured by creating dense, uniform small holes in thin to medium-gauge steel plate. Unlike steel grating, which relies on a load-bearing grid structure, this product focuses on precise opening geometry, flow resistance control, and protective screening. It is widely used for filtration, ventilation, machine guards, architectural decoration, and lightweight walkway applications where fine openings and consistent performance are required.
The galvanized surface provides excellent corrosion resistance, making it suitable for outdoor, humid, and industrial environments. The diamond-shaped opening pattern is formed through precision stamping, laser cutting, or chemical etching, ensuring uniform hole placement, no burrs, and excellent flatness. The material is available in carbon steel, galvanized steel, stainless steel 304 and 316, aluminum, and titanium to suit different corrosion, temperature, and weight requirements.
Technical Specifications
Product Type
Galvanized Diamond Mesh / Small Opening Expanded Metal / Precision Perforated Metal Sheet
Material
Carbon Steel / 235JR, Galvanized Steel, Stainless Steel 304, Stainless Steel 316, Aluminum, Titanium
Hole Size
Small holes: 0.3mm to 2.0mm. Micro-perforation: 0.3mm to 1.5mm. Tolerance approximately ±0.02mm to ±0.15mm.
Hole Shape
Round, square, slotted, hexagonal, and custom shapes
Hole Arrangement
Straight row or staggered row
Sheet Thickness
0.5mm to 3.0mm common. Thicker plates available for heavy-duty screening.
Open Area
Approximately 4.8% to 60%, customized by hole size and hole spacing
Surface Finish
Hot-dip galvanized, electro galvanized, PVC coated, or mill finish
Standard Panel Size
1000mm x 2000mm, 1220mm x 2440mm, and custom sizes
Customization
Hole size, hole spacing, open area, sheet thickness, panel size, and surface finish can all be customized
Features and Benefits
- Dense, uniform small holes for precise filtration and screening
- Galvanized surface for excellent corrosion resistance
- High open area ratio for efficient flow and ventilation
- Precision manufacturing with no burrs and excellent flatness
- Available in multiple hole shapes and arrangements
- Material options for corrosive, high-temperature, and lightweight applications
- One-piece construction with no welded joints
- Easy to cut, bend, and install on site
- Custom hole sizes, open areas, and panel dimensions available
- Bulk container loading optimized for export
Material Options
Carbon Steel / 235JR
Cost-effective choice for ventilation, machine guards, and platform treads. Requires surface protection for outdoor use.
Galvanized Steel
Zinc-coated carbon steel for corrosion resistance in humid and outdoor environments.
Stainless Steel 304 / 316
Excellent corrosion resistance for filtration, screening, food, pharmaceutical, and coastal applications.
Aluminum
Lightweight and corrosion-resistant for applications where weight reduction is important.
Titanium
High corrosion resistance and high-temperature performance for demanding chemical and aerospace applications.
Manufacturing and Inspection
Manufacturing Process
Precision stamping, laser cutting, or chemical etching to ensure uniform hole placement, no burrs, and excellent flatness.
Inspection Items
Hole size and spacing, open area ratio, flatness, surface finish, and corrosion protection. Filtration-grade products require flow resistance and efficiency verification.
Typical Applications
Filtration and Screening
Filter element support, fine screening, liquid and gas filtration.
Ventilation and Heat Dissipation
Equipment guards, cabinet cooling, and building ventilation.
Protection and Decoration
Guardrails, balcony panels, sound-absorbing panels, and curtain wall perforated panels.
Platforms and Walkways
Light-duty walkways and anti-slip treads, with open area and slip resistance balanced for safety.
Food and Pharmaceutical
Stainless steel 304 and 316 perforated sheets for hygienic processing and screening.
Architectural and Interior Design
Decorative facades, ceilings, room dividers, and custom perforated panels.
Selection Guide
Load-Bearing Priority
Choose steel grating when structural load capacity is the primary requirement.
Precision Flow and Protection
Choose small opening perforated metal when precise flow resistance, fine screening, or protective enclosure is required.
Environment
For coastal or humid environments, choose stainless steel 304 or 316, or galvanized steel. For high sunlight and temperature variation, avoid plastic-wood composites and prioritize metal materials.
Precision Level
For filtration and screening, select micro-perforation from 0.3mm to 1.5mm with tight tolerances. For ventilation and machine guards, standard small holes from 1mm to 3mm are suitable.
Cost Consideration
Carbon steel is the most economical option. Galvanized and stainless steel increase cost in that order. Micro-perforation requires higher processing cost.
Why Choose Hydwiremesh (Hengyueda)
| Advantage | Details |
|---|---|
| 20+ Years Experience | Two decades of wire mesh and perforated metal manufacturing and export expertise. |
| Strict Quality Control | Multi-stage inspection ensures every sheet meets specifications. |
| Global Reach | Customers in over 30 countries across industrial and construction sectors. |
| Flexible MOQ | Trial orders and bulk container orders both welcome. |
| Export Documentation | Complete customs clearance support and inspection reports. |
Request a Quote for Galvanized Diamond Mesh
Get factory-direct pricing, free samples, and fast turnaround. Contact our export team today.
Email: Kobe@hydwiremesh.com
Frequently Asked Questions
What is galvanized diamond mesh used for?
Galvanized diamond mesh with small openings is used for filtration, screening, ventilation, machine guards, architectural decoration, and lightweight platforms where precise opening size and corrosion resistance are required.
What is the difference between steel grating and small opening perforated metal?
Steel grating is a load-bearing grid structure designed for heavy loads and large spans. Small opening perforated metal is a precision sheet with dense, uniform holes, focused on flow resistance control, fine screening, and protective enclosure.
What hole sizes are available?
Standard small holes range from 0.3mm to 2.0mm. Micro-perforation ranges from 0.3mm to 1.5mm with tolerance from ±0.02mm to ±0.15mm. Custom sizes are available on request.
What materials are available?
Galvanized diamond mesh is available in carbon steel / 235JR, galvanized steel, stainless steel 304, stainless steel 316, aluminum, and titanium to suit different corrosion, temperature, and weight requirements.
What is the open area ratio?
Open area ranges from approximately 4.8% to 60%, customized by hole size and hole spacing to meet specific flow and screening requirements.
What is the lead time for bulk orders?
Standard lead time is 15 to 25 days after deposit, depending on order quantity and customization.
What payment terms do you accept?
We accept T/T, L/C, and other negotiable terms. Our sales team will provide detailed payment information with your quotation.
