6.25lb expanded metal grating
Description Of 6.25lb expanded metal grating:

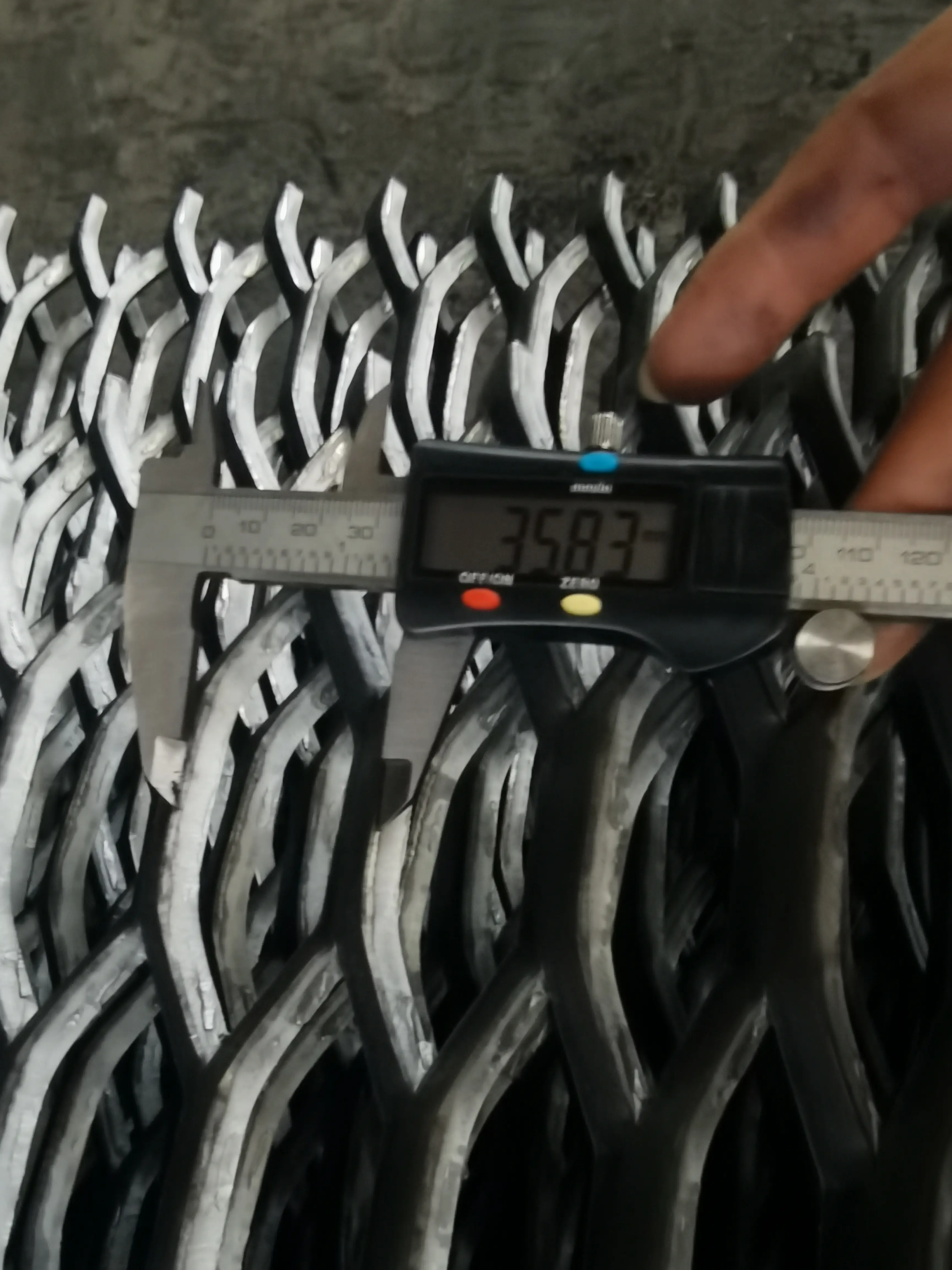

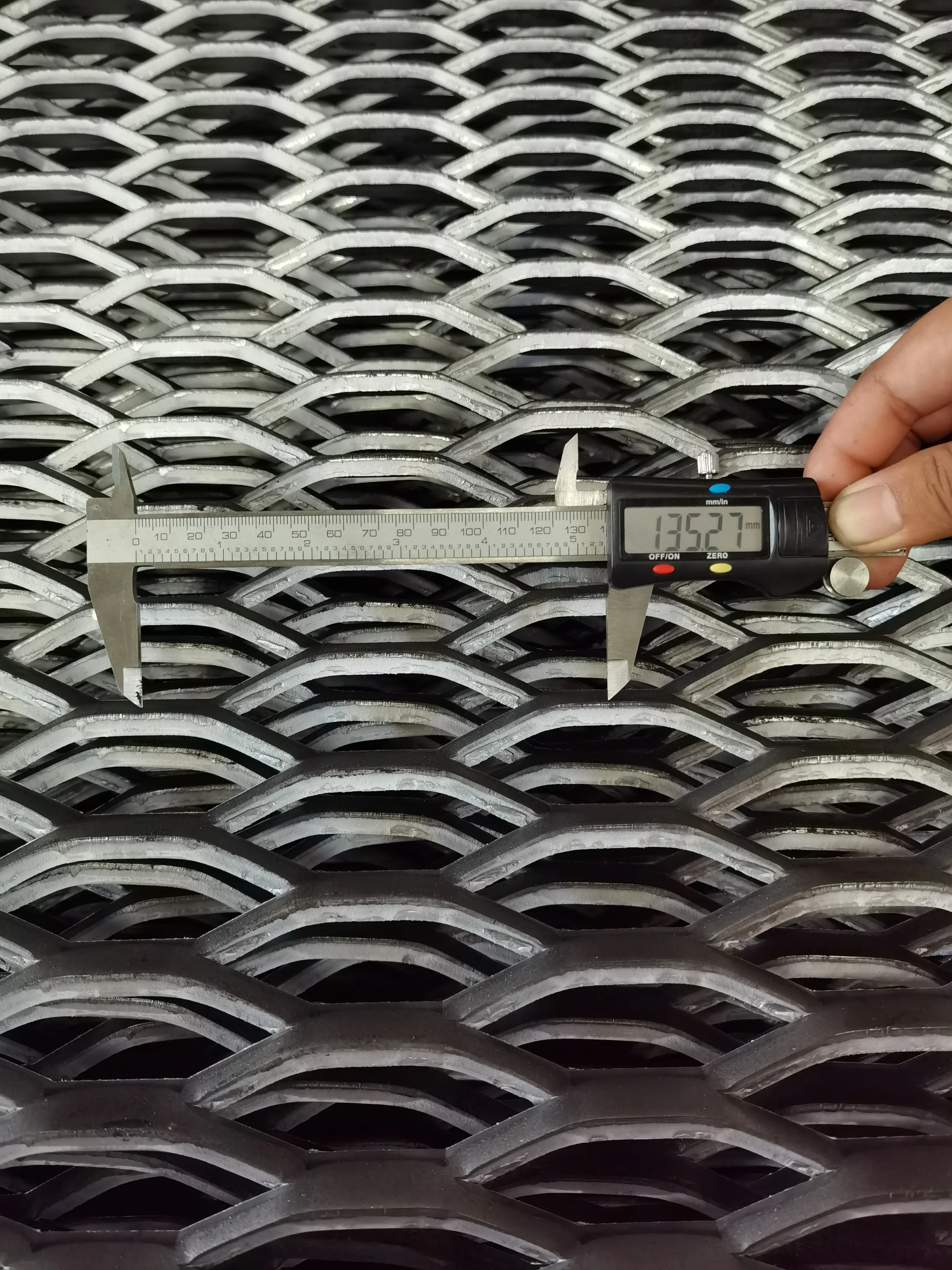

Expanded metal gratings are an excellent choice for elevated walkways in lieu of using traditional bar grating. Available in carbon steel, expanded metal gratings are lighter in weight compared to standard bar gratings. This 6/25lb expanded metal grating has a opening dimension of 1.412″ x 5.33″ and a strand thickness of .312″. Available in 4′ x 8′ sheets, these can be supplied in mill finish, painted black, or hot dipped galvanized.

Expanded metal grating refers to the treads used for various platforms and office personnel transportation. Compared with ordinary metal mesh, expanded metal grating must have a satisfactory anti-slip effect and a certain bearing capacity to ensure the life of service personnel on the post.

The expanded metal grating deems appropriate, and adopts the heavy metal mesh products in the expansion mesh series. Various product attributes: non-slip appearance, wear-resistant, can bear more than 800 kg per square meter, high tensile strength, strong toughness, no rust. Anti-aging, strong flame retardancy, smooth mesh surface and other properties.

Accurate Alloys expanded metals gratings are manufactured in carbon steel, aluminum and stainless steel.Expanded metal grating size chart

Expanded Metal Grating – Carbon Steelto ASTM A1011

Expanded GRATING – STAINLESS STEELto ASTM A240 Type 304

EXPANDED GRATING – ALUMINUM to ASTM B209

2.0-lb. 3.0-lb. 4.0-lb. 5.0-lb. 6.25-lb. 7.0-lb.

3.14-lb.

4.27-lb.

Concentrated Load and Deflection Tables for Spans Fixed on Both Ends

Carbon Steel

Aluminum

LOAD CRITERIA:

1. Concentrated load is applied at mid-span and is in units of pounds per foot of grating width.

2. Deflection is at the mid-span, and is measured in inches.

3. The test specimens on which this table is measured were welded at alternate strands to an angle fixture.

4. Testing has shown that if the both ends are not welded in place the capacity of the grating is drastically reduced.

A A variation in weight per square ft. of ±5 % is permissible, based on the weight of any sheet or bundle.

B A tolerance of ±5% is permitted in dimensions, center to center..

Application Of Expanded metal grating:

6.25#expanded metal grating is widely used in outer wall multi-storey building scaffolding pedals, high-altitude platform pedals, facility platforms, tower crane platforms, factory office platforms, ship production platforms, power plant walkway platforms, chemical plant walkway platforms, etc.
