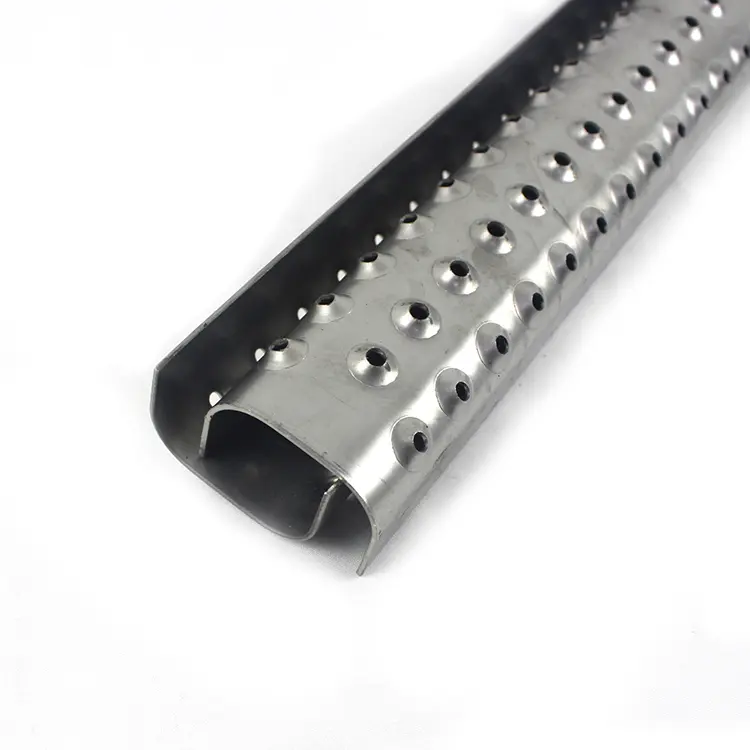

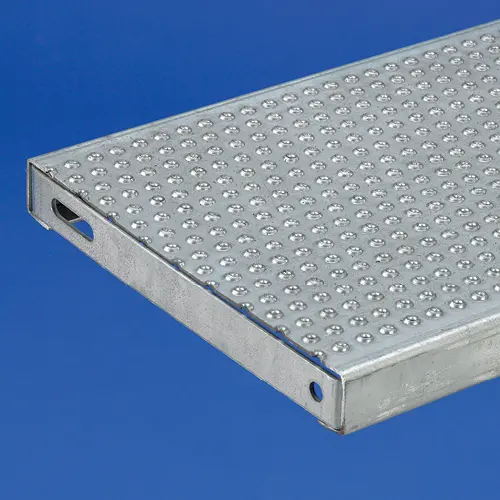

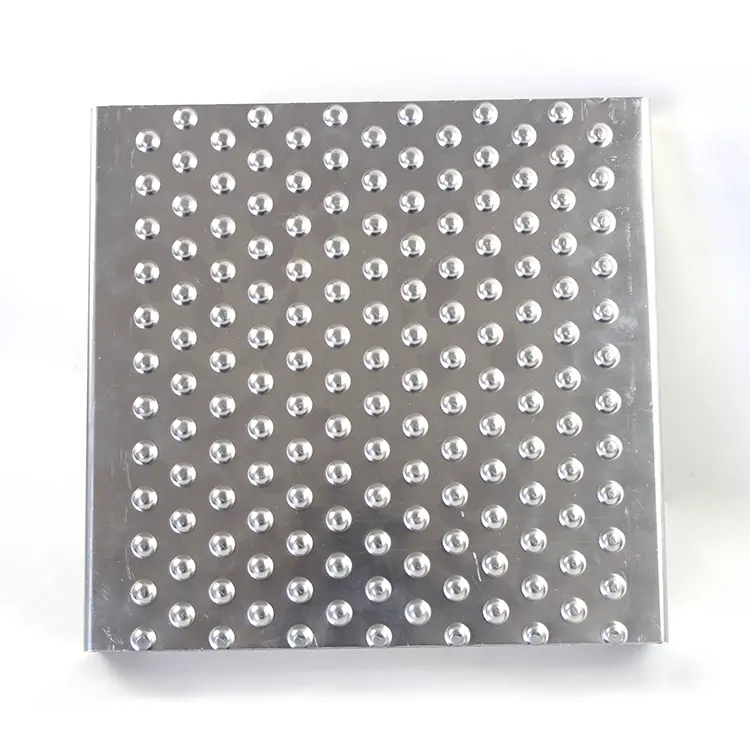

Dimple Channel Grating

Dimple Channel grating

Dimple channel grating is a heavy-duty metal safety grating engineered to provide a slip-resistant and secure walking surface in industrial and commercial environments. Manufactured from durable steel, aluminum, or stainless steel, each plank features a dimpled, perforated button surface that delivers reliable traction in all directions. This makes dimple channel grating an ideal choice for ramps, walkways, working platforms, stair aisles, catwalks, and floor safety applications where worker safety and long-term performance are critical.

Calidad estable
Precio razonable
Entrega rápida

Consulta en línea

Product Overview

Unlike standard grating, dimple channel grating offers a solid, closed walking surface with raised dimples that grip footwear even in wet, oily, or contaminated conditions. The channel design provides high load capacity and structural rigidity while remaining easy to handle and install. Available in a wide range of channel heights, steel gauges, and widths, this grating can be customized to match specific project requirements.

Technical Specifications

Product Type

Dimple Channel Grating / Traction Tread Safety Grating

Channel Height

2 inch, 2 1/2 inch, 3 inch, 4 inch, 5 inch

Steel Gauge

9GA, 10GA, 11GA

Channel Width

9 1/4 inch, 13 3/4 inch, 27 4/7 inch, 30 inch, 36 inch

Standard Length

10 ft, 12 ft

Material

Aluminum, Stainless Steel, Galvanized Steel, Carbon Steel

Surface

Dimpled, perforated button surface for slip resistance in all directions

Features and Benefits

High load capacity for heavy industrial use
Easy to handle and install on site
Maintenance free with long service life
Slip-resistant dimpled surface in all directions
Available in galvanized steel, carbon steel, stainless steel, and aluminum
Closed walking surface prevents small objects from falling through
Channel design provides structural rigidity and strength
Suitable for wet, oily, and contaminated environments
Custom channel heights, widths, and lengths available
Bulk container loading optimized for export

Typical Applications

Ramps

Slip-resistant surfaces for vehicle and pedestrian ramps in industrial facilities.

Walkways

Safe walking surfaces for plant walkways and pedestrian routes.

Working Platforms

Durable platform surfaces for maintenance and operational access.

Stair Aisles

Traction tread surfaces for stairways and aisle steps.

Catwalks

Elevated access walkways in refineries, plants, and warehouses.

Floor Safety Grating

Anti-slip flooring in production areas and high-traffic zones.

Ship Resistant Stair Treads

Corrosion-resistant stair treads for marine and offshore applications.

Production Process

Dimple channel grating is produced by forming a continuous metal channel and then pressing a pattern of raised dimples or perforated buttons into the walking surface. The dimples are evenly distributed across the plank to provide multidirectional slip resistance. The channel edges are formed to add rigidity, allowing the grating to span distances without additional support. Depending on the material selected, the finished grating may be galvanized, painted, or left with a natural finish for corrosion resistance.

Material Options

Galvanized Steel

Hot-dip galvanized for excellent corrosion resistance in outdoor and humid environments.

Carbon Steel

High strength and durability for heavy industrial applications.

Stainless Steel

Superior corrosion resistance for chemical, food, and marine environments.

Aluminum

Lightweight and corrosion-resistant for applications where weight is a concern.

Why Choose Hydwiremesh (Hengyueda)

Advantage	Details
20+ Years Experience	Two decades of metal grating manufacturing and export expertise.
Strict Quality Control	Multi-stage inspection ensures every plank meets specifications.
Global Reach	Customers in over 30 countries across industrial and construction sectors.
Flexible MOQ	Trial orders and bulk container orders both welcome.
Export Documentation	Complete customs clearance support and inspection reports.

Request a Quote for Dimple Channel Grating

Get factory-direct pricing, free samples, and fast turnaround. Contact our export team today.

Email: 517714@qq.com

Send Inquiry

Frequently Asked Questions

What is dimple channel grating used for?

Dimple channel grating is used for ramps, walkways, working platforms, stair aisles, catwalks, floor safety grating, and ship stair treads where slip resistance and load capacity are required.

What materials are available?

Dimple channel grating is available in galvanized steel, carbon steel, stainless steel, and aluminum to suit different environments and load requirements.

How does the dimpled surface improve safety?

The raised dimples or perforated buttons create friction in all directions, providing slip resistance even when the surface is wet, oily, or contaminated.

Can channel height and width be customized?

Yes. Standard channel heights range from 2 inch to 5 inch and widths from 9 1/4 inch to 36 inch. Custom sizes are available on request.

What is the lead time for bulk orders?

Standard lead time is 15 to 25 days after deposit, depending on order quantity and customization.

What payment terms do you accept?

We accept T/T, L/C, and other negotiable terms. Our sales team will provide detailed payment information with your quotation.
