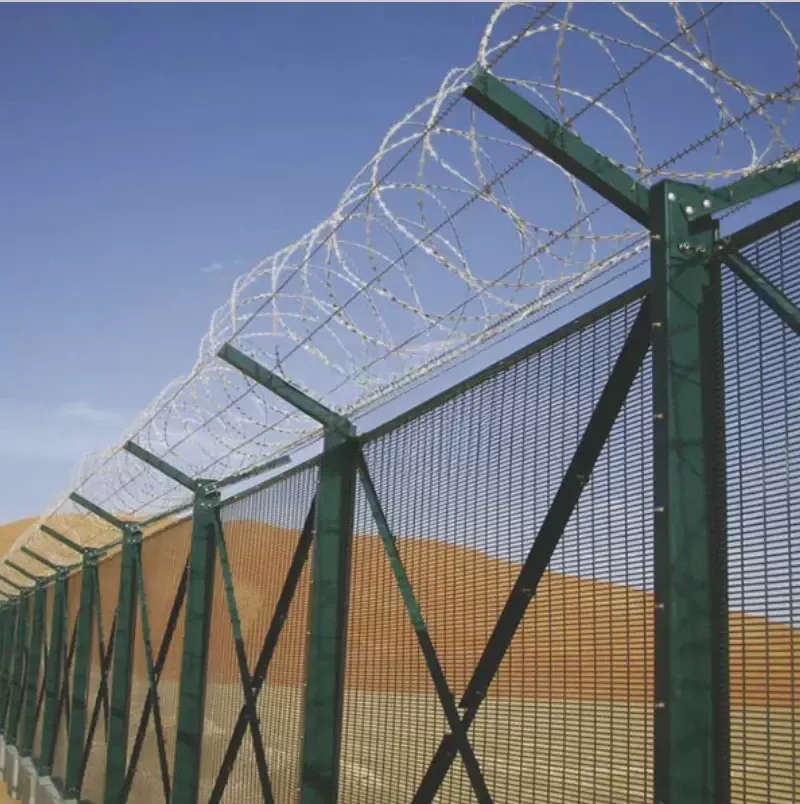

Quick DeliveryThe Hengyueda Mesh High Security Anti Climb Fence System features small, finger-proof mesh apertures that effectively prevent intruder climbing and cutter tool penetration. Designed for maximum delay and perimeter security, it provides superior resistance against cutting, climbing, and physical impact.

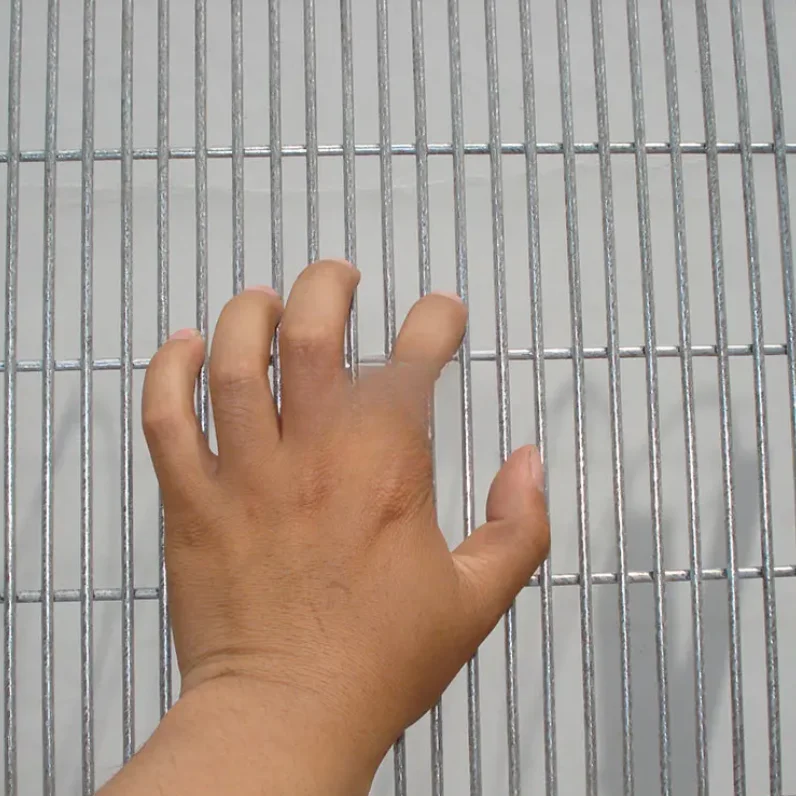

Using high quality carbon steel wire welded with small mesh apertures designed as 76.2×12.7mm (3"×0.5"), the panel provides strong physical resistance against cutting and climbing. It is engineered specifically for high security protection fields.
| Fence Height (mm) | Fence Width (mm) | Wire Diameter (mm) | Mesh Size (mm) |
|---|---|---|---|
| 1800 | 2200 / 2500 | 3.0–4.0 | 76.2×12.7mm (3"×0.5") |
| 2000 | 2200 / 2500 | 3.0–4.0 | |
| 2400 | 2500 | 3.0–4.0 | |
| 2700 | 2500 | 4.0 | |
| 3000 | 2500 / 3000 | 4.0 | |
| 3500 | 2500 / 3000 | 4.0 |
Hengyueda mesh provides matching heavy-duty posts for secure integration:
Standard installation involves embedding posts 600–1000mm underground and pouring concrete on-site for optimal structural anchoring. Flanged baseplate installation on hardened concrete is also available upon request.
Panels undergo electro-galvanizing or hot-dipped galvanizing, followed by thorough chemical surface treatment and international AkzoNobel polyester powder coating. The double-layer coating provides excellent anti-corrosion and UV resistance, guaranteeing a service lifespan of 10 years or more.
Hengyueda mesh High Security Anti Climb Fence is widely applied across critical perimeter zones:
Contact Hengyueda mesh engineering team for professional perimeter defense design, specification assistance, and factory-direct pricing.
Clearvu Reinforced
The Hengyueda Mesh Clearvu Reinforced Panel is a high-density, high-tensile security barrier engineered for maximum anti-climb and anti-cut perimeter protection. Equipped with welded 15×5.0mm flat bars spaced per 150mm across the panel, it effectively resists penetration by standard tools such as reciprocating saws, angle grinders, and acetylene torches.
High Security Anti Climb Fence
The Hengyueda Mesh High Security Anti Climb Fence System features small, finger-proof mesh apertures that effectively prevent intruder climbing and cutter tool penetration. Designed for maximum delay and perimeter security, it provides superior resistance against cutting, climbing, and physical impact.
Serried Vertical Wire 3D Type
The Hengyueda Mesh Serried Vertical Wire 3D Type Fence System is engineered with a dense vertical wire arrangement combined with pressed V-shaped structural bends. This design optimizes both visual aesthetics and high-impact resistance, offering reliable anti-climb and anti-cut protection for high-security applications.
Serried Horizontal Wire 3D Type
The Hengyueda Serried Horizontal Wire 3D Type Fence System combines high-density 358 anti-climb welded mesh with pressed V-shaped rigidity folds. Designed for high-level perimeter protection, the 3D profile adds significant bending resistance to the panel while maintaining powerful anti-climb and anti-cut performance.
