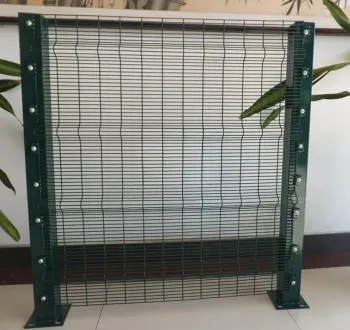

Quick DeliveryThe Hengyueda Serried Horizontal Wire 3D Type Fence System combines high-density 358 anti-climb welded mesh with pressed V-shaped rigidity folds. Designed for high-level perimeter protection, the 3D profile adds significant bending resistance to the panel while maintaining powerful anti-climb and anti-cut performance.
Using high quality steel wire welded into dense openings ranging from 9.5×76.2mm to 12.7×76.2mm, Hengyueda 3D panels are specifically built to resist concussion, climbing, and tool cutting.
| Fence Height (mm) | Fence Width (mm) | Wire Diameter (mm) | Mesh Size (mm) | No. of V Folds |
|---|---|---|---|---|
| 1800 | 2200 | 3.0 / 4.0 | 9.5×76.2mm, 12.5×76.2mm, 12.7×75mm, 12.7×76.2mm |
3 |
| 2000 | 2200 | 3.0 / 4.0 | 3 | |
| 2400 | 2500 | 3.0 / 4.0 | 4 | |
| 2700 | 2500 | 4.0 | 4 | |
| 3000 | 2515 | 4.0 | 5 | |
| 3500 | 2515 | 4.0 | 5 |

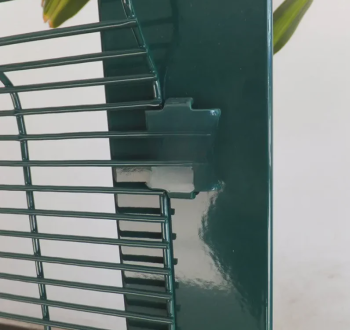

Hengyueda provides versatile, high-strength post configurations for the 3D system:
The standard installation involves burying the post 600–1000mm into the ground and pouring concrete on-site to build a heavy-duty physical barrier.
Fences undergo electro-galvanizing or hot-dipped galvanizing, followed by multi-stage chemical surface cleaning and high-grade AkzoNobel powder coating. The double-layer coating provides strong resistance against UV rays and atmospheric corrosion, ensuring a service life of 10 years or more.
Hengyueda Serried Horizontal Wire 3D Type fence is widely specified for high-security defense projects:
Contact Hengyueda’s technical support team to get tailor-made perimeter fencing solutions and official quotations.
Clearvu Reinforced
The Hengyueda Mesh Clearvu Reinforced Panel is a high-density, high-tensile security barrier engineered for maximum anti-climb and anti-cut perimeter protection. Equipped with welded 15×5.0mm flat bars spaced per 150mm across the panel, it effectively resists penetration by standard tools such as reciprocating saws, angle grinders, and acetylene torches.
High Security Anti Climb Fence
The Hengyueda Mesh High Security Anti Climb Fence System features small, finger-proof mesh apertures that effectively prevent intruder climbing and cutter tool penetration. Designed for maximum delay and perimeter security, it provides superior resistance against cutting, climbing, and physical impact.
Serried Vertical Wire 3D Type
The Hengyueda Mesh Serried Vertical Wire 3D Type Fence System is engineered with a dense vertical wire arrangement combined with pressed V-shaped structural bends. This design optimizes both visual aesthetics and high-impact resistance, offering reliable anti-climb and anti-cut protection for high-security applications.
Serried Horizontal Wire 3D Type
The Hengyueda Serried Horizontal Wire 3D Type Fence System combines high-density 358 anti-climb welded mesh with pressed V-shaped rigidity folds. Designed for high-level perimeter protection, the 3D profile adds significant bending resistance to the panel while maintaining powerful anti-climb and anti-cut performance.
