Galvanized Gabion Mesh

Galvanized gabion mesh

Galvanized gabion mesh is a durable and versatile wire mesh structure manufactured from low-carbon steel wire or PVC-coated steel wire, mechanically woven into hexagonal mesh and filled with stones or other hard materials. It is widely used in civil engineering, mining, road and bridge construction, river and channel protection, and slope stabilization. Galvanized gabion mesh offers excellent corrosion resistance, high strength, and long service life, making it a reliable solution for both structural and ecological engineering projects.

Stable Quality
Reasonable Price
Quick Delivery

Online Consultation

Product Overview

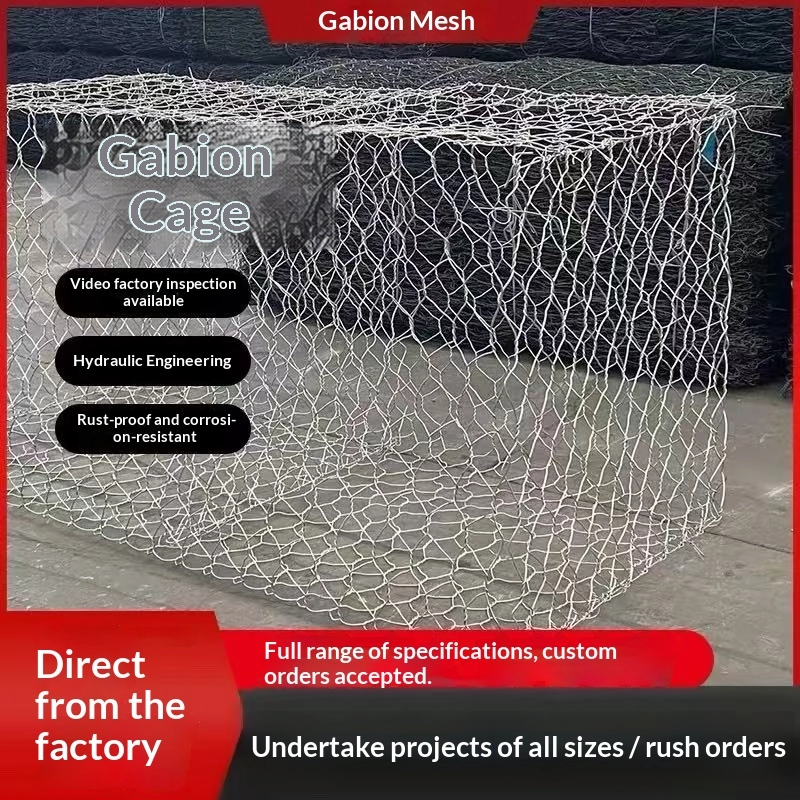

Also known as gabion net, gabion slope protection, gabion mattress, or Reno mattress, galvanized gabion mesh is formed into box-shaped structures called gabion boxes. The mesh is commonly made with wire diameters from 2.0mm to 4.0mm and mesh openings such as 60mm x 80mm, 80mm x 100mm, 100mm x 120mm, and 120mm x 150mm. The hexagonal double-twist weave provides flexibility, permeability, and resistance to impact and seismic activity, allowing the structure to integrate effectively with the natural environment.

Technical Specifications

Product Type

Galvanized Gabion Mesh / Gabion Net / Gabion Box

Material

Low-carbon steel wire, PVC-coated steel wire, stainless steel alloy wire, zinc-aluminum alloy wire (5% or 10%), galvanized steel wire

Wire Diameter

2.0mm to 4.0mm

Mesh Opening

60mm x 80mm, 80mm x 100mm, 100mm x 120mm, 120mm x 150mm, and custom sizes

Weaving Type

Hexagonal double-twist weave

Surface Finish

Hot-dip galvanized, electro galvanized, PVC coated, zinc-aluminum alloy coated

Gabion Box Dimensions

Custom lengths, widths, and heights available

Customization

Wire diameter, mesh opening, box dimensions, and surface finish can all be customized

Features and Benefits

High corrosion resistance for long-term outdoor use
High tensile strength and structural integrity
Flexible hexagonal weave resists impact and seismic activity
Excellent permeability for natural drainage
Simple and fast installation on site
Long service life with minimal maintenance
Environmentally friendly and ecological
Cost-effective compared with rigid concrete structures
Available in multiple materials and coatings
Custom sizes and mesh openings available

Material Options

PVC Gabion Mesh

Steel wire coated with PVC for enhanced corrosion resistance and color options.

Stainless Steel Alloy Gabion Mesh

Excellent corrosion resistance for aggressive chemical and marine environments.

Zinc-Aluminum Alloy Gabion Mesh (5% or 10%)

Superior corrosion resistance compared with standard galvanized wire, ideal for coastal and high-humidity areas.

Hot-dip galvanized or electro galvanized steel wire for general civil engineering applications.

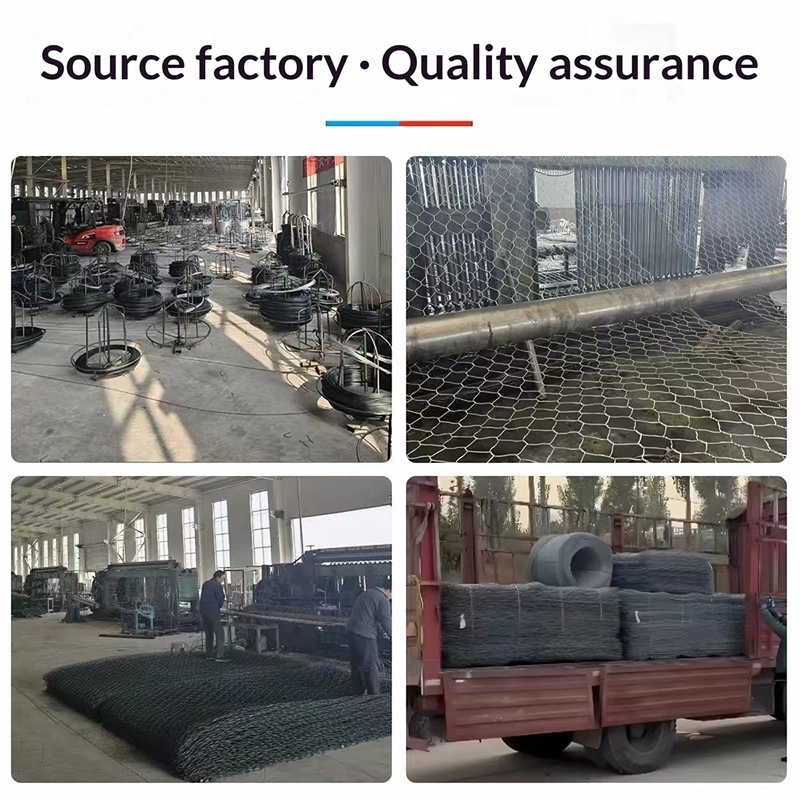

Production Process

The production process of galvanized gabion mesh includes the following steps:

Raw material selection (wire rod)
Cold drawing / galvanizing / PVC coating
Machine weaving into hexagonal mesh
Manual cutting and assembly
Product inspection
Packaging and transportation

Typical Applications

Slope Protection

Stabilizing soil slopes and preventing erosion on highways, railways, and construction sites.

Foundation Pit Support

Retaining walls and support structures for excavation and foundation works.

River and Channel Protection

Preventing scour and erosion in rivers, canals, and waterways.

Road and Bridge Engineering

Embankment protection, bridge abutments, and roadbed reinforcement.

Mining and Earthworks

Mine slope stabilization, tailings containment, and land reclamation.

Ecological Engineering

Green infrastructure projects requiring natural drainage and vegetation growth.

Coastal and Marine Works

Seawall protection, breakwaters, and coastal erosion control.

Landscape Architecture

Decorative retaining walls and garden features using stone-filled gabion boxes.

Why Choose Hydwiremesh (Hengyueda)

Advantage	Details
20+ Years Experience	Two decades of wire mesh manufacturing and export expertise.
Strict Quality Control	Multi-stage inspection ensures every gabion meets specifications.
Global Reach	Customers in over 30 countries across civil engineering and construction sectors.
Flexible MOQ	Trial orders and bulk container orders both welcome.
Export Documentation	Complete customs clearance support and inspection reports.

Request a Quote for Galvanized Gabion Mesh

Get factory-direct pricing, free samples, and fast turnaround. Contact our export team today.

Email: Kobe@hydwiremesh.com

Send Inquiry

Frequently Asked Questions

What is galvanized gabion mesh used for?

Galvanized gabion mesh is used for slope protection, foundation pit support, river and channel protection, road and bridge engineering, mining, coastal works, and ecological engineering projects.

What materials are available for gabion mesh?

Gabion mesh is available in PVC-coated steel wire, stainless steel alloy wire, zinc-aluminum alloy wire (5% or 10%), and galvanized steel wire.

What wire diameters and mesh openings are available?

Common wire diameters range from 2.0mm to 4.0mm. Common mesh openings include 60mm x 80mm, 80mm x 100mm, 100mm x 120mm, and 120mm x 150mm. Custom sizes are available on request.

How is galvanized gabion mesh produced?

The production process includes raw material selection, cold drawing or coating, machine weaving into hexagonal mesh, manual cutting and assembly, inspection, and packaging.

What are the advantages of gabion mesh over concrete structures?

Gabion mesh offers flexibility, permeability, ecological integration, seismic resistance, and cost-effectiveness compared with rigid concrete structures.

What is the lead time for bulk orders?

Standard lead time is 15 to 25 days after deposit, depending on order quantity and customization.

What payment terms do you accept?

We accept T/T, L/C, and other negotiable terms. Our sales team will provide detailed payment information with your quotation.

Related Tags

galvanized gabion mesh, gabion net, gabion box, gabion slope protection, gabion mattress, Reno mattress, PVC gabion mesh, stainless steel gabion mesh, zinc-aluminum gabion mesh, hexagonal wire mesh, gabion retaining wall, river protection gabion

Hengyueda (Tianjin) International Trade Co., Ltd. Supplying quality wire mesh products worldwide for over 20 years.

Tianjin, China | www.hydwiremesh.com | Kobe@hydwiremesh.com

Galvanized gabion mesh

Plastic-coated gabion mesh

Plastic-coated gabion mesh is a hexagonal woven wire mesh structure manufactured from galvanized low-carbon steel wire that is then coated with a layer of PVC. The mesh is mechanically woven into double-twisted hexagonal openings, assembled into box-shaped baskets, and filled with stones or other hard materials to form flexible, permeable, and monolithic structures. This product is widely used for earthwork, mining, road, bridge, and river engineering projects, as well as slope support, foundation pit support, and riverbank anti-scour protection. PVC-coated gabion mesh offers excellent seismic and impact resistance, effectively combining engineering functionality with ecological integration.

Welded Gabion Box

Welded Gabion Box (also known as welded gabion basket or mesh cage) manufactured by Hengyueda mesh is fabricated from high-tensile steel wire mesh panels electrically welded at each intersection. Designed for quick assembly with spiral binders or C-rings, it provides exceptional structural stability and clean aesthetic lines when filled with stones, ideal for earth retaining walls, slope protection, and architectural landscape designs.

Defensive Barrier

Defensive Barrier (also known as defensive barrier gabion or military bastion) manufactured by Hengyueda mesh is a multi-cellular barrier system prefabricated from heavy-duty welded wire mesh panels and lined with heavy-duty non-woven geotextile fabric. Designed for rapid assembly and filling with sand, earth, or stone, it offers robust physical containment against ballistic threats, explosions, and catastrophic flood waters.
