Plastic-Coated Gabion Mesh

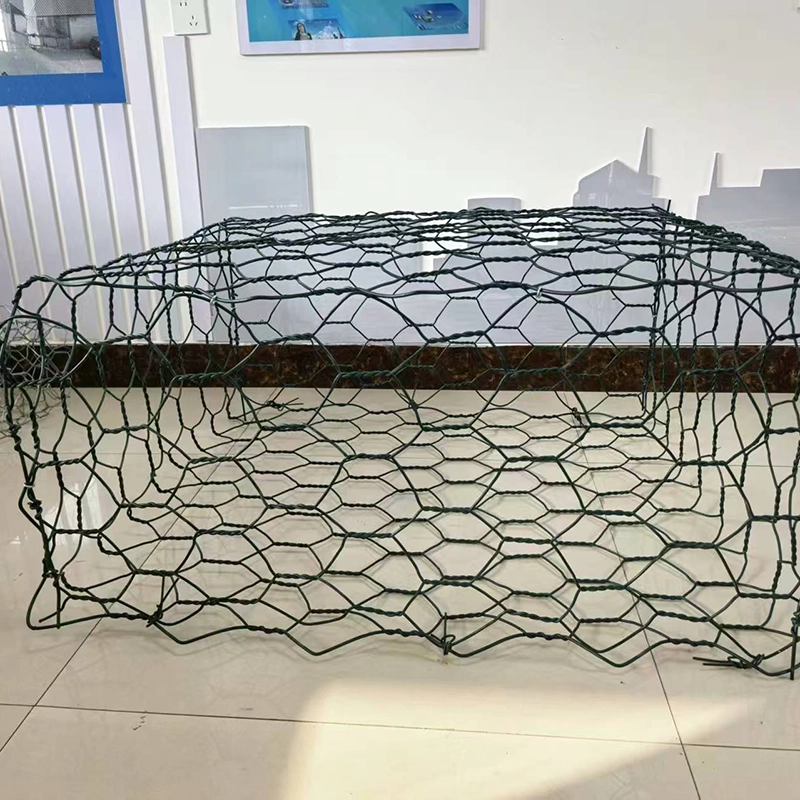

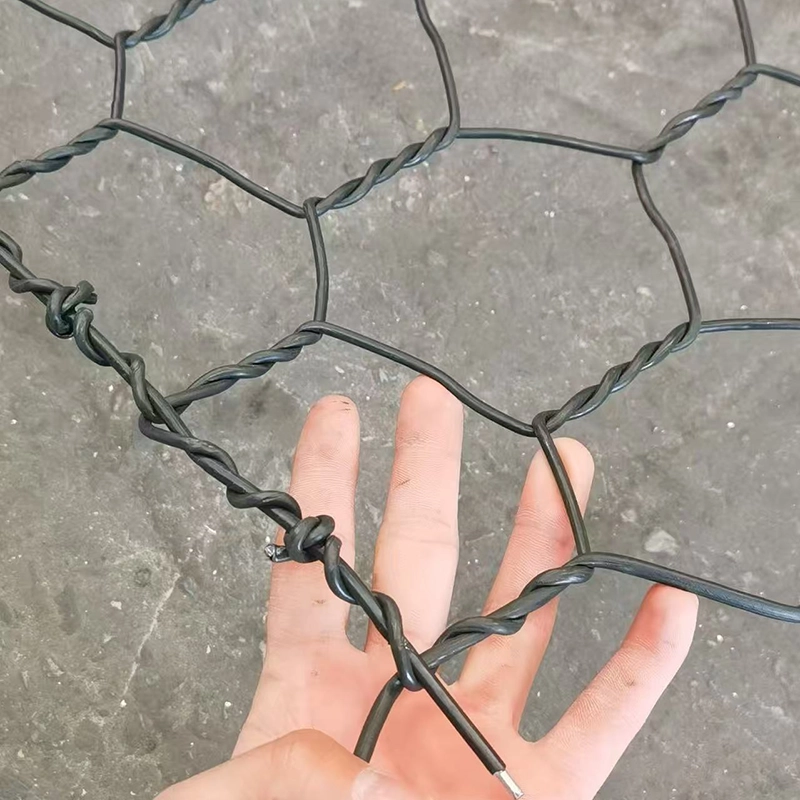

Plastic-coated gabion mesh

Plastic-coated gabion mesh is a hexagonal woven wire mesh structure manufactured from galvanized low-carbon steel wire that is then coated with a layer of PVC. The mesh is mechanically woven into double-twisted hexagonal openings, assembled into box-shaped baskets, and filled with stones or other hard materials to form flexible, permeable, and monolithic structures. This product is widely used for earthwork, mining, road, bridge, and river engineering projects, as well as slope support, foundation pit support, and riverbank anti-scour protection. PVC-coated gabion mesh offers excellent seismic and impact resistance, effectively combining engineering functionality with ecological integration.

Stable Quality
Reasonable Price
Quick Delivery

Online Consultation

Product Overview

The PVC coating acts as a protective barrier, preventing the steel wire from exposure to moisture, chemicals, and other corrosive elements. This significantly extends the service life of the gabion structure, particularly in wet soil, riverbanks, and long-term exposure conditions, reducing the need for frequent replacements and maintenance.

Technical Specifications

Product Type

Plastic-Coated Gabion Mesh / PVC Coated Gabion Box / Gabion Basket

Material

Galvanized low-carbon steel wire with PVC coating

Wire Diameter (Inner / Outer)

2.0mm/3.0mm, 2.2mm/3.2mm, 2.4mm/3.4mm, 2.7mm/3.7mm, 2.8mm/3.8mm, 3.0mm/4.0mm

Selvedge Wire Diameter

3.4mm/4.4mm, and other configurations

Mesh Opening (mm)

60mm x 80mm, 80mm x 100mm, 80mm x 120mm, 100mm x 120mm, 100mm x 150mm, 120mm x 150mm

PVC Coating Thickness

Nominal 0.5mm, minimum 0.38mm

Standard Basket Sizes

1m x 1m x 1m, 2m x 1m x 1m, 3m x 1m x 1m, 2m x 0.5m x 0.5m, and custom sizes

Weaving Type

Double-twisted hexagonal mesh, mechanically woven

Surface Treatment

Hot-dip galvanized + PVC coating, Galfan + PVC coating

Customization

Wire diameter, mesh opening, basket size, coating color, and surface treatment can all be customized

Features and Benefits

PVC coating provides excellent corrosion resistance in wet and chemical environments
Double-twisted hexagonal structure is flexible and resists deformation
Permeable design allows water to pass through while preventing hydrostatic pressure damage
No collapse even under large-scale deformation
Simple installation with no special technology required
Economical solution that is easy to transport and assemble on site
Sludge and sediment in the stones support plant growth for ecological integration
Weather-proof and UV-resistant for long-term outdoor exposure
Reduced transport freight due to foldable design
Custom wire diameters, mesh openings, and basket sizes available

Material Options

PVC-Coated Galvanized Steel

Standard option for riverbanks, slopes, and wet environments requiring corrosion resistance and long service life.

Galfan-Coated Steel (Zn-5% Al)

Enhanced corrosion resistance compared with standard galvanized wire, suitable for aggressive soil and water conditions.

Stainless Steel Alloy

Superior corrosion resistance for the most demanding chemical and marine applications.

Galvanized Steel

Cost-effective option for dry outdoor and landscape applications where PVC coating is not required.

Manufacturing Process

Step 1: Raw Material Selection

High-quality low-carbon steel wire rod is selected as the base material.

Step 2: Wire Drawing and Coating

The wire rod is cold-drawn to the required diameter, then hot-dip galvanized and coated with PVC.

Step 3: Mechanical Weaving

The coated wire is mechanically woven into double-twisted hexagonal mesh.

Step 4: Cutting and Assembly

The woven mesh is cut, folded, and assembled into gabion boxes with diaphragms and stiffeners.

Step 5: Inspection and Packaging

Finished products are inspected for mesh size, wire diameter, coating thickness, and appearance before packaging and transport.

Typical Applications

Riverbank and Channel Protection

Preventing erosion of river embankments, canal banks, and drainage channels.

Slope Support and Retaining Walls

Stabilizing slopes and constructing flexible retaining structures for roads and infrastructure.

Foundation Pit Support

Providing lateral support and erosion control for excavation and foundation works.

Bridge Protection

Protecting bridge abutments and piers from scour and water flow damage.

Flood Control

Guiding water flow, reinforcing flood banks, and preventing rock breaking.

Coastal and Seaside Protection

Protecting coastal areas from wave action and shoreline erosion.

Landscaping and Urban Design

Creating decorative retaining walls, noise attenuation structures, and green walls.

Mining and Earthwork

Supporting earthwork, mining, and soil reinforcement projects.

Why Choose Hydwiremesh (Hengyueda)

Advantage	Details
20+ Years Experience	Two decades of wire mesh manufacturing and export expertise.
Strict Quality Control	Multi-stage inspection ensures every gabion meets specifications.
Global Reach	Customers in over 30 countries across construction and infrastructure sectors.
Flexible MOQ	Trial orders and bulk container orders both welcome.
Export Documentation	Complete customs clearance support and inspection reports.

Request a Quote for Plastic-Coated Gabion Mesh

Get factory-direct pricing, free samples, and fast turnaround. Contact our export team today.

Email: Kobe@hydwiremesh.com

Send Inquiry

Frequently Asked Questions

What is plastic-coated gabion mesh used for?

Plastic-coated gabion mesh is used for riverbank protection, slope support, retaining walls, foundation pit support, bridge protection, flood control, coastal protection, landscaping, and mining earthwork projects.

What is the difference between PVC-coated and galvanized gabion mesh?

PVC-coated gabion mesh has an additional layer of PVC on top of the galvanized wire, providing enhanced corrosion resistance, UV protection, and color options. Galvanized gabion mesh is suitable for dry outdoor and landscape applications where the PVC coating is not required.

What wire diameters and mesh openings are available?

Standard wire diameters include 2.0mm/3.0mm, 2.2mm/3.2mm, 2.4mm/3.4mm, 2.7mm/3.7mm, 2.8mm/3.8mm, and 3.0mm/4.0mm. Mesh openings include 60mm x 80mm, 80mm x 100mm, 80mm x 120mm, 100mm x 120mm, 100mm x 150mm, and 120mm x 150mm.

What are the standard basket sizes?

Standard basket sizes include 1m x 1m x 1m, 2m x 1m x 1m, 3m x 1m x 1m, and 2m x 0.5m x 0.5m. Custom sizes are available on request.

Is the gabion mesh permeable?

Yes. The hexagonal mesh structure allows water to pass through while preventing damage from hydrostatic pressure, making it an environmentally friendly choice for riverbank and erosion control applications.

What is the lead time for bulk orders?

Standard lead time is 15 to 25 days after deposit, depending on order quantity and customization.

What payment terms do you accept?

We accept T/T, L/C, and other negotiable terms. Our sales team will provide detailed payment information with your quotation.
